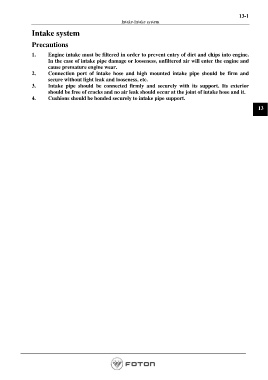

13-1
Intake-Intake system
Intake system
Precautions
1. Engine intake must be filtered in order to prevent entry of dirt and chips into engine.
In the case of intake pipe damage or looseness, unfiltered air will enter the engine and
cause premature engine wear.
2. Connection port of intake hose and high mounted intake pipe should be firm and
secure without light leak and looseness, etc.
3. Intake pipe should be connected firmly and securely with its support. Its exterior
should be free of cracks and no air leak should occur at the joint of intake hose and it.
4. Cushions should be bonded securely to intake pipe support.
