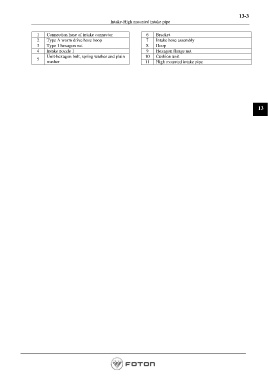

P. 577
13-3
Intake-High mounted intake pipe
1 Connection hose of intake connector 6 Bracket
2 Type A worm drive hose hoop 7 Intake hose assembly
3 Type 1 hexagon nut 8 Hoop
4 Intake nozzle 1 9 Hexagon flange nut
Unit-hexagon bolt, spring washer and plain 10 Cushion unit
5
washer 11 High mounted intake pipe
13
