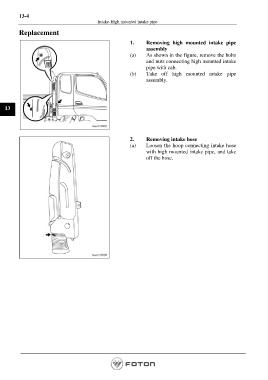

13-4
Intake-High mounted intake pipe
Replacement
1. Removing high mounted intake pipe
assembly
(a) As shown in the figure, remove the bolts
and nuts connecting high mounted intake
pipe with cab.
(b) Take off high mounted intake pipe
assembly.
13
2. Removing intake hose
(a) Loosen the hoop connecting intake hose
with high mounted intake pipe, and take
off the hose.
