13-5

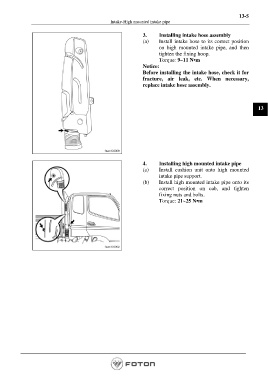

Intake-High mounted intake pipe

3. Installing intake hose assembly
(a) Install intake hose to its correct position
on high mounted intake pipe, and then
tighten the fixing hoop.
Torque: 9~11 N•m
Notice:
Before installing the intake hose, check it for
fracture, air leak, etc. When necessary,
replace intake hose assembly.

13

4. Installing high mounted intake pipe
(a) Install cushion unit onto high mounted
intake pipe support.
(b) Install high mounted intake pipe onto its
correct position on cab, and tighten
fixing nuts and bolts.
Torque: 21~25 N•m
