13-9

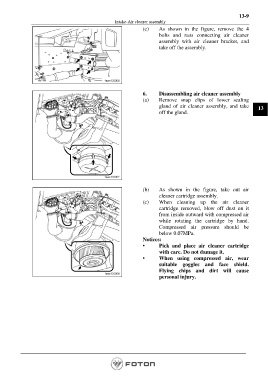

Intake-Air cleaner assembly
(c) As shown in the figure, remove the 4
bolts and nuts connecting air cleaner
assembly with air cleaner bracket, and
take off the assembly.

6. Disassembling air cleaner assembly
(a) Remove snap clips of lower sealing
gland of air cleaner assembly, and take 13
off the gland.

(b) As shown in the figure, take out air
cleaner cartridge assembly.
(c) When cleaning up the air cleaner
cartridge removed, blow off dust on it
from inside outward with compressed air
while rotating the cartridge by hand.
Compressed air pressure should be
below 0.07MPa.
Notices:
• Pick and place air cleaner cartridge
with care. Do not damage it.
• When using compressed air, wear
suitable goggles and face shield.
Flying chips and dirt will cause
personal injury.
