13-8

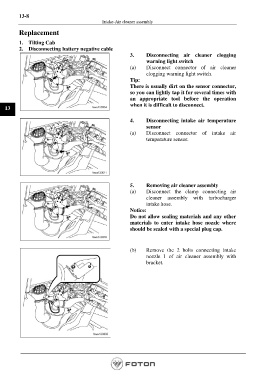

Intake-Air cleaner assembly

Replacement

1. Tilting Cab
2. Disconnecting battery negative cable
3. Disconnecting air cleaner clogging
warning light switch
(a) Disconnect connector of air cleaner
clogging warning light switch.
Tip:
There is usually dirt on the sensor connector,
so you can lightly tap it for several times with
an appropriate tool before the operation
when it is difficult to disconnect.
13

4. Disconnecting intake air temperature
sensor
(a) Disconnect connector of intake air
temperature sensor.

5. Removing air cleaner assembly
(a) Disconnect the clamp connecting air
cleaner assembly with turbocharger
intake hose.
Notice:
Do not allow sealing materials and any other
materials to enter intake hose nozzle where
should be sealed with a special plug cap.

(b) Remove the 2 bolts connecting intake
nozzle 1 of air cleaner assembly with
bracket.
