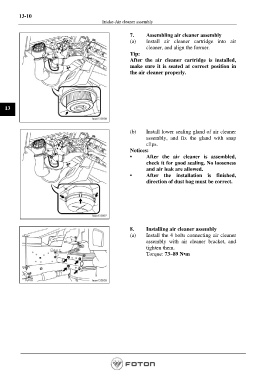

Page 584 - Workshop Manual - Aumark (BJ1051)

13-10
Intake-Air cleaner assembly

7. Assembling air cleaner assembly
(a) Install air cleaner cartridge into air
cleaner, and align the former.
Tip:
After the air cleaner cartridge is installed,
make sure it is seated at correct position in
the air cleaner properly.

13

(b) Install lower sealing gland of air cleaner
assembly, and fix the gland with snap
clips.
Notices:
• After the air cleaner is assembled,
check it for good sealing. No looseness
and air leak are allowed.
• After the installation is finished,
direction of dust bag must be correct.

8. Installing air cleaner assembly
(a) Install the 4 bolts connecting air cleaner
assembly with air cleaner bracket, and
tighten them.
Torque: 73~89 N•m
