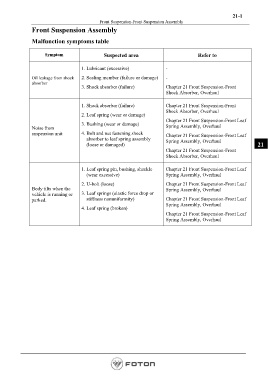

P. 619
21-1
Front Suspension-Front Suspension Assembly
Front Suspension Assembly
Malfunction symptoms table
Symptom Suspected area Refer to
1. Lubricant (excessive) -
Oil leakage from shock 2. Sealing member (failure or damage) -
absorber
3. Shock absorber (failure) Chapter 21 Front Suspension-Front
Shock Absorber, Overhaul
1. Shock absorber (failure) Chapter 21 Front Suspension-Front
Shock Absorber, Overhaul
2. Leaf spring (wear or damage)
Chapter 21 Front Suspension-Front Leaf
3. Bushing (wear or damage)
Noise from Spring Assembly, Overhaul
suspension unit 4. Bolt and nut fastening shock Chapter 21 Front Suspension-Front Leaf
absorber to leaf spring assembly Spring Assembly, Overhaul
(loose or damaged) 21
Chapter 21 Front Suspension-Front
Shock Absorber, Overhaul
1. Leaf spring pin, bushing, shackle Chapter 21 Front Suspension-Front Leaf
(wear excessive) Spring Assembly, Overhaul
2. U-bolt (loose) Chapter 21 Front Suspension-Front Leaf
Body tilts when the Spring Assembly, Overhaul
vehicle is running or 3. Leaf springs (elastic force drop or
parked. stiffness nonuniformity) Chapter 21 Front Suspension-Front Leaf
Spring Assembly, Overhaul
4. Leaf spring (broken)
Chapter 21 Front Suspension-Front Leaf
Spring Assembly, Overhaul
Page 619
