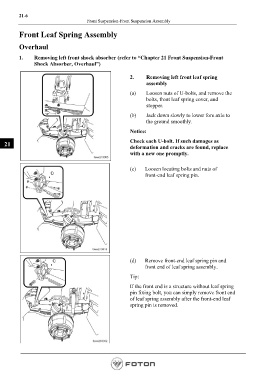

21-6
Front Suspension-Front Suspension Assembly

Front Leaf Spring Assembly

Overhaul

1. Removing left front shock absorber (refer to “Chapter 21 Front Suspension-Front
Shock Absorber, Overhaul”)

2. Removing left front leaf spring
assembly

(a) Loosen nuts of U-bolts, and remove the
bolts, front leaf spring cover, and
stopper.

(b) Jack down slowly to lower fore axle to
the ground smoothly.

Notice:
Check each U-bolt. If such damages as
21
deformation and cracks are found, replace
with a new one promptly.

(c) Loosen locating bolts and nuts of
front-end leaf spring pin.

(d) Remove front-end leaf spring pin and
front end of leaf spring assembly.

Tip:
If the front end is a structure without leaf spring
pin fixing bolt, you can simply remove front end
of leaf spring assembly after the front-end leaf
spring pin is removed.
