21-2
Front Suspension-Front Suspension Assembly

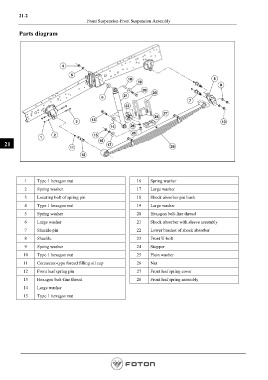

Parts diagram

21

1 Type 1 hexagon nut 16 Spring washer

2 Spring washer 17 Large washer
3 Locating bolt of spring pin 18 Shock absorber pin bush
4 Type 1 hexagon nut 19 Large washer
5 Spring washer 20 Hexagon bolt-fine thread

6 Large washer 21 Shock absorber with sleeve assembly
7 Shackle pin 22 Lower bracket of shock absorber
8 Shackle 23 Front U-bolt

9 Spring washer 24 Stopper
10 Type 1 hexagon nut 25 Plain washer
11 Connector-type forced filling oil cup 26 Nut
12 Front leaf spring pin 27 Front leaf spring cover

13 Hexagon bolt-fine thread 28 Front leaf spring assembly
14 Large washer
15 Type 1 hexagon nut
