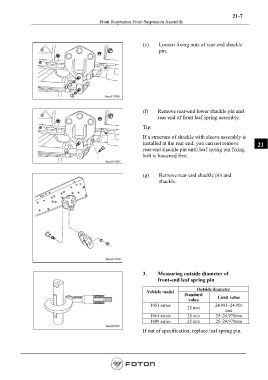

21-7
Front Suspension-Front Suspension Assembly

(e) Loosen fixing nuts of rear-end shackle
pin.

(f) Remove rear-end lower shackle pin and
rear end of front leaf spring assembly.
Tip:

If a structure of shackle with sleeve assembly is
installed at the rear end, you can not remove 21
rear-end shackle pin until leaf spring pin fixing
bolt is loosened first.

(g) Remove rear-end shackle pin and
shackle.

3. Measuring outside diameter of
front-end leaf spring pin
Outside diameter
Vehicle model
Standard Limit value
value
1051 series 25 mm 24.981~24.956
mm
1061 series 25 mm 25~24.979mm
1089 series 25 mm 25~24.979mm

If out of specification, replace leaf spring pin.
