21-9
Front Suspension-Front Suspension Assembly

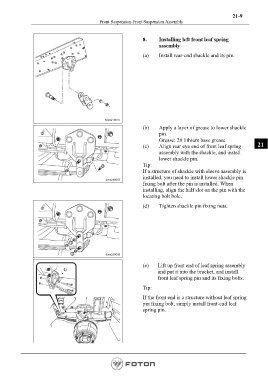

8. Installing left front leaf spring
assembly
(a) Install rear-end shackle and its pin.

(b) Apply a layer of grease to lower shackle
pin.
Grease: 2# lithium base grease
(c) Align rear eye end of front leaf spring 21
assembly with the shackle, and install
lower shackle pin.
Tip:
If a structure of shackle with sleeve assembly is
installed, you need to install lower shackle pin
fixing bolt after the pin is installed. When
installing, align the half slot on the pin with the
locating bolt hole.
(d) Tighten shackle pin fixing nuts.

(e) Lift up front end of leaf spring assembly
and put it into the bracket, and install
front leaf spring pin and its fixing bolts.

Tip:

If the front end is a structure without leaf spring
pin fixing bolt, simply install front-end leaf
spring pin.
