Rear Suspension-Rear Suspension Assembly

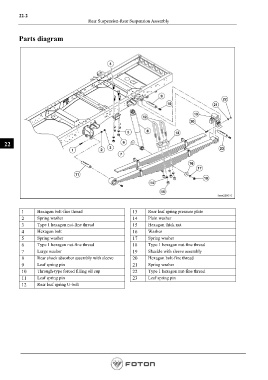

Parts diagram
22
1 Hexagon bolt-fine thread 13 Rear leaf spring pressure plate
2 Spring washer 14 Plain washer
3 Type 1 hexagon nut-fine thread 15 Hexagon thick nut
4 Hexagon bolt 16 Washer
5 Spring washer 17 Spring washer
6 Type 1 hexagon nut-fine thread 18 Type 1 hexagon nut-fine thread
7 Large washer 19 Shackle with sleeve assembly
8 Rear shock absorber assembly with sleeve 20 Hexagon bolt-fine thread
9 Leaf spring pin 21 Spring washer
10 Through-type forced filling oil cup 22 Type 1 hexagon nut-fine thread
11 Leaf spring pin 23 Leaf spring pin
12 Rear leaf spring U-bolt
