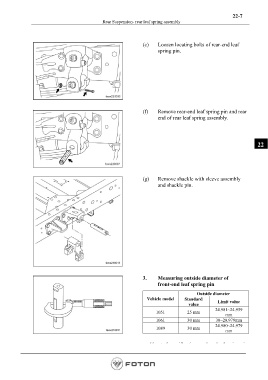

P. 637
22-7
Rear Suspension- rear leaf spring assembly
(e) Loosen locating bolts of rear-end leaf
spring pin.
(f) Remove rear-end leaf spring pin and rear
end of rear leaf spring assembly.
22
(g) Remove shackle with sleeve assembly
and shackle pin.
3. Measuring outside diameter of
front-end leaf spring pin
Outside diameter
Vehicle model Standard
value Limit value
24.981~24.959
1051 25 mm
mm
1061 30 mm 30~29.979mm
24.980~24.979
1089 30 mm
mm
If out of specification, replace leaf spring pin.
