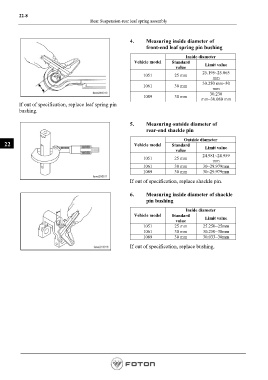

Page 638 - Workshop Manual - Aumark (BJ1051)

22-8
Rear Suspension-rear leaf spring assembly

4. Measuring inside diameter of
front-end leaf spring pin bushing

Inside diameter
Vehicle model Standard Limit value
value
25.195~25.065
1051 25 mm
mm
30.250 mm~30
1061 30 mm
mm
1089 30 mm 30.230
mm~30.080 mm
If out of specification, replace leaf spring pin
bushing.

5. Measuring outside diameter of
rear-end shackle pin
Outside diameter
22 Vehicle model Standard
value Limit value
24.981~24.959
1051 25 mm
mm
1061 30 mm 30~29.979mm
1089 30 mm 30~29.979mm
If out of specification, replace shackle pin.

6. Measuring inside diameter of shackle
pin bushing

Inside diameter
Vehicle model Standard
value Limit value
1051 25 mm 25.250~25mm
1061 30 mm 30.250~30mm
1089 30 mm 30.033~30mm

If out of specification, replace bushing.

Page 638
