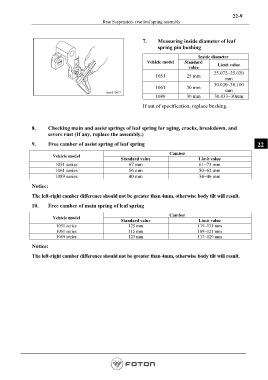

Page 639 - Workshop Manual - Aumark (BJ1051)
P. 639
22-9
Rear Suspension- rear leaf spring assembly
7. Measuring inside diameter of leaf
spring pin bushing
Inside diameter
Vehicle model Standard Limit value
value
25.072~25.020
1051 25 mm
mm
30.020~30.100
1061 30 mm
mm
1089 30 mm 30.033~30mm
If out of specification, replace bushing.
8. Checking main and assist springs of leaf spring for aging, cracks, breakdown, and
severe rust (If any, replace the assembly.)
9. Free camber of assist spring of leaf spring 22
Camber
Vehicle model
Standard value Limit value
1051 series 67 mm 61~73 mm
1061 series 56 mm 50~62 mm
1089 series 40 mm 34~46 mm
Notice:
The left-right camber difference should not be greater than 4mm, otherwise body tilt will result.
10. Free camber of main spring of leaf spring
Camber
Vehicle model
Standard value Limit value
1051 series 125 mm 119~131 mm
1061 series 115 mm 109~121 mm
1089 series 123 mm 117~129 mm
Notice:
The left-right camber difference should not be greater than 4mm, otherwise body tilt will result.
