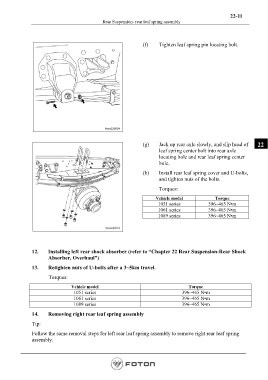

22-11
Rear Suspension- rear leaf spring assembly

(f) Tighten leaf spring pin locating bolt.

(g) Jack up rear axle slowly, and slip head of 22
leaf spring center bolt into rear axle
locating hole and rear leaf spring center
hole.

(h) Install rear leaf spring cover and U-bolts,
and tighten nuts of the bolts.

Torques:
Vehicle model Torque
1051 series 396~465 N•m
1061 series 396~465 N•m
1089 series 396~465 N•m

12. Installing left rear shock absorber (refer to “Chapter 22 Rear Suspension-Rear Shock
Absorber, Overhaul”)

13. Retighten nuts of U-bolts after a 3~5km travel.

Torques:

Vehicle model Torque
1051 series 396~465 N•m
1061 series 396~465 N•m
1089 series 396~465 N•m
14. Removing right rear leaf spring assembly

Tip:

Follow the same removal steps for left rear leaf spring assembly to remove right rear leaf spring
assembly.
