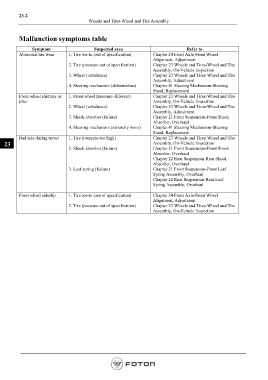

23-2
Wheels and Tires-Wheel and Tire Assembly

Malfunction symptoms table

Symptom Suspected area Refer to
Abnormal tire wear 1. Tire toe-in (out of specification) Chapter 24 Front Axle-Front Wheel
Alignment, Adjustment
2. Tire (pressure out of specification) Chapter 23 Wheels and Tires-Wheel and Tire
Assembly, On-Vehicle Inspection
3. Wheel (unbalance) Chapter 23 Wheels and Tires-Wheel and Tire
Assembly, Adjustment
4. Steering mechanism (deformation) Chapter 41 Steering Mechanism-Steering
Stand, Replacement
Front wheel shimmy or 1. Front wheel (pressure different) Chapter 23 Wheels and Tires-Wheel and Tire
jitter Assembly, On-Vehicle Inspection
2. Wheel (unbalance) Chapter 23 Wheels and Tires-Wheel and Tire
Assembly, Adjustment
3. Shock absorber (failure) Chapter 21 Front Suspension-Front Shock
Absorber, Overhaul
4. Steering mechanism (seriously worn) Chapter 41 Steering Mechanism-Steering
Stand, Replacement
Bad ride during travel 1. Tire (pressure too high) Chapter 23 Wheels and Tires-Wheel and Tire
23 Assembly, On-Vehicle Inspection
2. Shock absorber (failure) Chapter 21 Front Suspension-Front Shock
Absorber, Overhaul
Chapter 22 Rear Suspension-Rear Shock
Absorber, Overhaul
3. Leaf spring (failure) Chapter 21 Front Suspension-Front Leaf
Spring Assembly, Overhaul
Chapter 22 Rear Suspension-Rear Leaf
Spring Assembly, Overhaul

Front wheel sideslip 1. Tire toe-in (out of specification) Chapter 24 Front Axle-Front Wheel
Alignment, Adjustment
2. Tire (pressure out of specification) Chapter 23 Wheels and Tires-Wheel and Tire
Assembly, On-Vehicle Inspection
