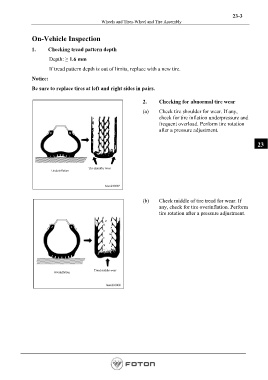

P. 647
23-3
Wheels and Tires-Wheel and Tire Assembly
On-Vehicle Inspection
1. Checking tread pattern depth
Depth: ≥ 1.6 mm
If tread pattern depth is out of limits, replace with a new tire.
Notice:
Be sure to replace tires at left and right sides in pairs.
2. Checking for abnormal tire wear
(a) Check tire shoulder for wear. If any,
check for tire inflation underpressure and
frequent overload. Perform tire rotation
after a pressure adjustment.
23
Tire shoulder wear
Underinflation
(b) Check middle of tire tread for wear. If
any, check for tire overinflation. Perform
tire rotation after a pressure adjustment.
Tread middle wear
Overinflation
