P. 648

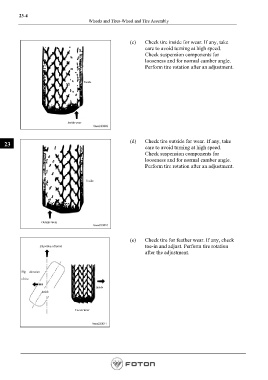

23-4
Wheels and Tires-Wheel and Tire Assembly
(c) Check tire inside for wear. If any, take
care to avoid turning at high speed.
Check suspension components for
looseness and for normal camber angle.
Perform tire rotation after an adjustment.
Inside
Inside wear
(d) Check tire outside for wear. If any, take
23
care to avoid turning at high speed.
Check suspension components for
looseness and for normal camber angle.
Perform tire rotation after an adjustment.
Inside
Outside wear
(e) Check tire for feather wear. If any, check
Direction of travel toe-in and adjust. Perform tire rotation
after the adjustment.
Slip direction
of tire
Inside
Inside
Toe-in wear
