Page 653 - Workshop Manual - Aumark (BJ1051)
P. 653
23-9

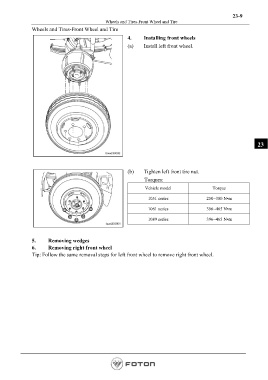

Wheels and Tires-Front Wheel and Tire
Wheels and Tires-Front Wheel and Tire
4. Installing front wheels
(a) Install left front wheel.
23
(b) Tighten left front tire nut.
Torques:
Vehicle model Torque
1051 series 250~300 N•m
1061 series 396~465 N•m
1089 series 396~465 N•m
5. Removing wedges
6. Removing right front wheel
Tip: Follow the same removal steps for left front wheel to remove right front wheel.
Page 653
