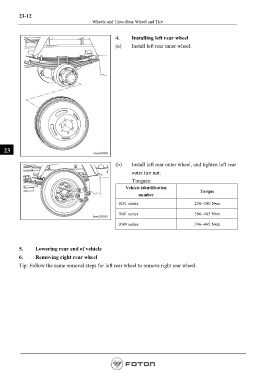

Page 656 - Workshop Manual - Aumark (BJ1051)
P. 656
23-12
Wheels and Tires-Rear Wheel and Tire
4. Installing left rear wheel
(a) Install left rear inner wheel.
23
(b) Install left rear outer wheel, and tighten left rear
outer tire nut.
Torques:
Vehicle identification
Torque
number
1051 series 250~300 N•m
1061 series 396~465 N•m
1089 series 396~465 N•m
5. Lowering rear end of vehicle
6. Removing right rear wheel
Tip: Follow the same removal steps for left rear wheel to remove right rear wheel.
