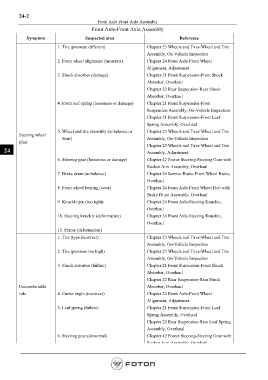

P. 660
24-2
Front Axle-Front Axle Assembly
Front Axle-Front Axle Assembly
Symptom Suspected area Reference
1. Tire (pressure different) Chapter 23 Wheels and Tires-Wheel and Tire
Assembly, On-Vehicle Inspection
2. Front wheel alignment (incorrect) Chapter 24 Front Axle-Front Wheel
Alignment, Adjustment
3. Shock absorber (damage) Chapter 21 Front Suspension-Front Shock
Absorber, Overhaul
Chapter 22 Rear Suspension-Rear Shock
Absorber, Overhaul
4. Front leaf spring (looseness or damage) Chapter 21 Front Suspension-Front
Suspension Assembly, On-Vehicle Inspection
Chapter 21 Front Suspension-Front Leaf
Spring Assembly, Overhaul
5. Wheel and tire assembly (unbalance or Chapter 23 Wheels and Tires-Wheel and Tire
Steering wheel
wear) Assembly, On-Vehicle Inspection
jitter
Chapter 23 Wheels and Tires-Wheel and Tire
24 Assembly, Adjustment
6. Steering gear (looseness or damage) Chapter 42 Power Steering-Steering Gear with
Rocker Arm Assembly, Overhaul
7. Brake drum (unbalance) Chapter 26 Service Brake-Front Wheel Brake,
Overhaul
8. Front wheel bearing (wear) Chapter 24 Front Axle-Front Wheel Hub with
Brake Drum Assembly, Overhaul
9. Knuckle pin (too tight) Chapter 24 Front Axle-Steering Knuckle,
Overhaul
10. Steering knuckle (deformation) Chapter 24 Front Axle-Steering Knuckle,
Overhaul
11. Frame (deformation) -
1. Tire (type incorrect) Chapter 23 Wheels and Tires-Wheel and Tire
Assembly, On-Vehicle Inspection
2. Tire (pressure too high) Chapter 23 Wheels and Tires-Wheel and Tire
Assembly, On-Vehicle Inspection
3. Shock absorber (failure) Chapter 21 Front Suspension-Front Shock
Absorber, Overhaul
Chapter 22 Rear Suspension-Rear Shock
Uncomfortable Absorber, Overhaul
ride 4. Caster angle (incorrect) Chapter 24 Front Axle-Front Wheel
Alignment, Adjustment
5. Leaf spring (failure) Chapter 21 Front Suspension-Front Leaf
Spring Assembly, Overhaul
Chapter 22 Rear Suspension-Rear Leaf Spring
Assembly, Overhaul
6. Steering gear (abnormal) Chapter 42 Power Steering-Steering Gear with
Rocker Arm Assembly, Overhaul
