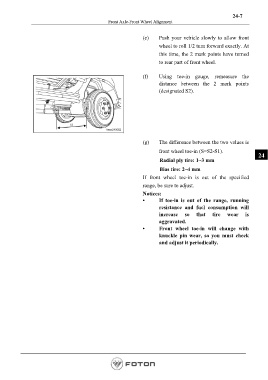

24-7
Front Axle-Front Wheel Alignment

(e) Push your vehicle slowly to allow front

wheel to roll 1/2 turn forward exactly. At
this time, the 2 mark points have turned
to rear part of front wheel.

(f) Using toe-in gauge, remeasure the
distance between the 2 mark points
(designated S2).

(g) The difference between the two values is

front wheel toe-in (S=S2-S1).
24
Radial ply tire: 1~3 mm
Bias tire: 2~4 mm
If front wheel toe-in is out of the specified
range, be sure to adjust.

Notices:
• If toe-in is out of the range, running
resistance and fuel consumption will
increase so that tire wear is
aggravated.
• Front wheel toe-in will change with
knuckle pin wear, so you must check
and adjust it periodically.
