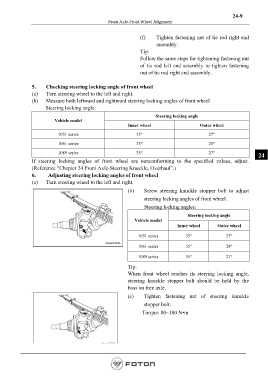

24-9
Front Axle-Front Wheel Alignment

(f) Tighten fastening nut of tie rod right end
assembly.
Tip:
Follow the same steps for tightening fastening nut
of tie rod left end assembly to tighten fastening
nut of tie rod right end assembly.

5. Checking steering locking angle of front wheel
(a) Turn steering wheel to the left and right.
(b) Measure both leftward and rightward steering locking angles of front wheel
Steering locking angle:
Steering locking angle
Vehicle model
Inner wheel Outer wheel
1051 series 35° 27°

1061 series 35° 28°

1089 series 35° 27°
24
If steering locking angles of front wheel are nonconforming to the specified values, adjust.
(Reference “Chapter 24 Front Axle-Steering Knuckle, Overhaul”.)
6. Adjusting steering locking angles of front wheel
(a) Turn steering wheel to the left and right.
(b) Screw steering knuckle stopper bolt to adjust
steering locking angles of front wheel.
Steering locking angles:

Steering locking angle
Vehicle model
Inner wheel Outer wheel

1051 series 35° 27°

1061 series 35° 28°
1089 series 35° 27°

Tip:
When front wheel reaches its steering locking angle,
steering knuckle stopper bolt should be held by the
boss on fore axle.
(c) Tighten fastening nut of steering knuckle
stopper bolt.

Torque: 80~100 N•m
