24-13

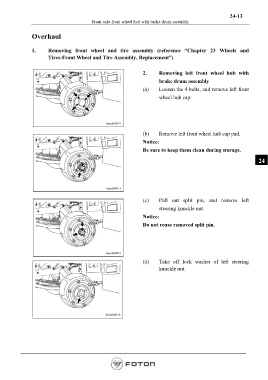

Front axle-front wheel hub with brake drum assembly

Overhaul

1. Removing front wheel and tire assembly (reference “Chapter 23 Wheels and
Tires-Front Wheel and Tire Assembly, Replacement”)

2. Removing left front wheel hub with

brake drum assembly
(a) Loosen the 4 bolts, and remove left front
wheel hub cap.

(b) Remove left front wheel hub cap pad.
Notice:

Be sure to keep them clean during storage.

24

(c) Pull out split pin, and remove left
steering knuckle nut.
Notice:
Do not reuse removed split pin.

(d) Take off lock washer of left steering
knuckle nut.
