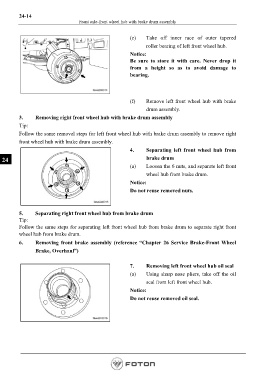

Page 672 - Workshop Manual - Aumark (BJ1051)

24-14
Front axle-front wheel hub with brake drum assembly

(e) Take off inner race of outer tapered
roller bearing of left front wheel hub.
Notice:
Be sure to store it with care. Never drop it
from a height so as to avoid damage to
bearing.

(f) Remove left front wheel hub with brake
drum assembly.

3. Removing right front wheel hub with brake drum assembly
Tip:
Follow the same removal steps for left front wheel hub with brake drum assembly to remove right
front wheel hub with brake drum assembly.

4. Separating left front wheel hub from
24 brake drum
(a) Loosen the 6 nuts, and separate left front
wheel hub from brake drum.

Notice:
Do not reuse removed nuts.

5. Separating right front wheel hub from brake drum
Tip:
Follow the same steps for separating left front wheel hub from brake drum to separate right front
wheel hub from brake drum.
6. Removing front brake assembly (reference “Chapter 26 Service Brake-Front Wheel

Brake, Overhaul”)

7. Removing left front wheel hub oil seal
(a) Using sharp nose pliers, take off the oil
seal from left front wheel hub.

Notice:
Do not reuse removed oil seal.

Page 672
