Front axle-front wheel hub with brake drum assembly

Front Wheel Hub with Brake Drum Assembly

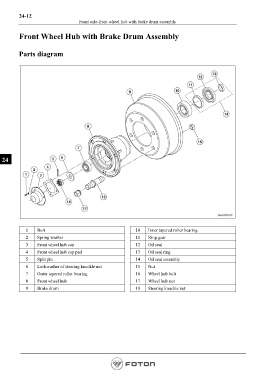

Parts diagram

24

1 Bolt 10 Inner tapered roller bearing
2 Spring washer 11 Ring gear
3 Front wheel hub cap 12 Oil seal
4 Front wheel hub cap pad 13 Oil seal ring
5 Split pin 14 Oil seal assembly
6 Lockwasher of steering knuckle nut 15 Nut
7 Outer tapered roller bearing 16 Wheel hub bolt
8 Front wheel hub 17 Wheel hub nut
9 Brake drum 18 Steering knuckle nut
