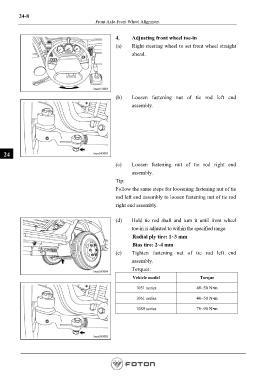

24-8
Front Axle-Front Wheel Alignment

4. Adjusting front wheel toe-in
(a) Right steering wheel to set front wheel straight
ahead.

(b) Loosen fastening nut of tie rod left end
assembly.

24
(c) Loosen fastening nut of tie rod right end

assembly.
Tip:

Follow the same steps for loosening fastening nut of tie
rod left end assembly to loosen fastening nut of tie rod
right end assembly.

(d) Hold tie rod shaft and turn it until front wheel
toe-in is adjusted to within the specified range.

Radial ply tire: 1~3 mm
Bias tire: 2~4 mm
(e) Tighten fastening nut of tie rod left end
assembly.

Torques:
Vehicle model Torque

1051 series 40~50 N•m

1061 series 40~50 N•m

1089 series 70~90 N•m
