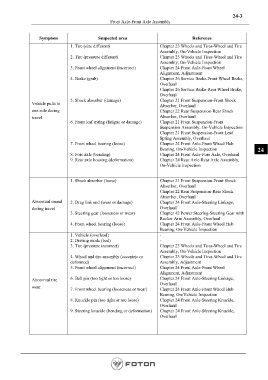

Page 661 - Workshop Manual - Aumark (BJ1051)

24-3
Front Axle-Front Axle Assembly

Symptom Suspected area Reference
1. Tire (size different) Chapter 23 Wheels and Tires-Wheel and Tire
Assembly, On-Vehicle Inspection
2. Tire (pressure different) Chapter 23 Wheels and Tires-Wheel and Tire
Assembly, On-Vehicle Inspection
3. Front wheel alignment (incorrect) Chapter 24 Front Axle-Front Wheel
Alignment, Adjustment
4. Brake (grab) Chapter 26 Service Brake-Front Wheel Brake,
Overhaul
Chapter 26 Service Brake-Rear Wheel Brake,
Overhaul
5. Shock absorber (damage) Chapter 21 Front Suspension-Front Shock
Vehicle pulls to
Absorber, Overhaul
one side during Chapter 22 Rear Suspension-Rear Shock
travel Absorber, Overhaul
6. Front leaf spring (fatigue or damage) Chapter 21 Front Suspension-Front
Suspension Assembly, On-Vehicle Inspection
Chapter 21 Front Suspension-Front Leaf
Spring Assembly, Overhaul
7. Front wheel bearing (loose) Chapter 24 Front Axle-Front Wheel Hub
Bearing, On-Vehicle Inspection 24
8. Fore axle (bending) Chapter 24 Front Axle-Fore Axle, Overhaul
9. Rear axle housing (deformation) Chapter 24 Rear Axle-Rear Axle Assembly,
On-Vehicle Inspection

1. Shock absorber (loose) Chapter 21 Front Suspension-Front Shock
Absorber, Overhaul
Chapter 22 Rear Suspension-Rear Shock
Absorber, Overhaul
Abnormal sound 2. Drag link end (wear or damage) Chapter 24 Front Axle-Steering Linkage,
during travel Overhaul
3. Steering gear (looseness or wear) Chapter 42 Power Steering-Steering Gear with
Rocker Arm Assembly, Overhaul
4. Front wheel bearing (loose) Chapter 24 Front Axle-Front Wheel Hub
Bearing, On-Vehicle Inspection
1. Vehicle (overload) -
2. Driving mode (bad) -
3. Tire (pressure incorrect) Chapter 23 Wheels and Tires-Wheel and Tire
Assembly, On-Vehicle Inspection
4. Wheel and tire assembly (eccentric or Chapter 23 Wheels and Tires-Wheel and Tire
deformed) Assembly, Adjustment
5. Front wheel alignment (incorrect) Chapter 24 Front Axle-Front Wheel
Alignment, Adjustment
Abnormal tire 6. Ball pin (too tight or too loose) Chapter 24 Front Axle-Steering Linkage,
Overhaul
wear
7. Front wheel bearing (looseness or wear) Chapter 24 Front Axle-Front Wheel Hub
Bearing, On-Vehicle Inspection
8. Knuckle pin (too tight or too loose) Chapter 24 Front Axle-Steering Knuckle,
Overhaul
9. Steering knuckle (bending or deformation) Chapter 24 Front Axle-Steering Knuckle,
Overhaul
