22-6
Rear Suspension-rear leaf spring assembly

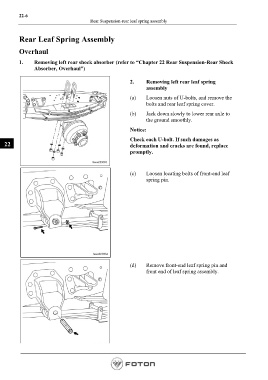

Rear Leaf Spring Assembly

Overhaul

1. Removing left rear shock absorber (refer to “Chapter 22 Rear Suspension-Rear Shock
Absorber, Overhaul”)

2. Removing left rear leaf spring
assembly
(a) Loosen nuts of U-bolts, and remove the
bolts and rear leaf spring cover.

(b) Jack down slowly to lower rear axle to
the ground smoothly.

Notice:

Check each U-bolt. If such damages as
22 deformation and cracks are found, replace
promptly.

(c) Loosen locating bolts of front-end leaf
spring pin.

(d) Remove front-end leaf spring pin and
front end of leaf spring assembly.
