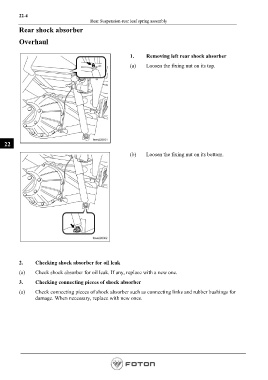

Page 634 - Workshop Manual - Aumark (BJ1051)

22-4
Rear Suspension-rear leaf spring assembly
Rear shock absorber

Overhaul

1. Removing left rear shock absorber
(a) Loosen the fixing nut on its top.

22

(b) Loosen the fixing nut on its bottom.

2. Checking shock absorber for oil leak

(a) Check shock absorber for oil leak. If any, replace with a new one.
3. Checking connecting pieces of shock absorber

(a) Check connecting pieces of shock absorber such as connecting links and rubber bushings for
damage. When necessary, replace with new ones.

Page 634
