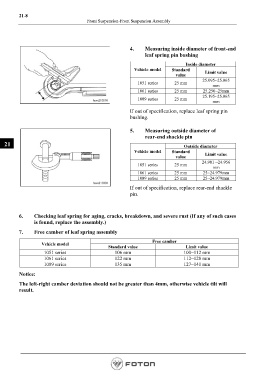

P. 626
21-8
Front Suspension-Front Suspension Assembly
4. Measuring inside diameter of front-end
leaf spring pin bushing
Inside diameter
Vehicle model Standard
value Limit value
25.095~25.065
1051 series 25 mm
mm
1061 series 25 mm 25.250~25mm
25.195~25.065
1089 series 25 mm
mm
If out of specification, replace leaf spring pin
bushing.
5. Measuring outside diameter of
rear-end shackle pin
21 Outside diameter
Vehicle model Standard Limit value
value
24.981 ~24.956
1051 series 25 mm
mm
1061 series 25 mm 25~24.979mm
1089 series 25 mm 25~24.979mm
If out of specification, replace rear-end shackle
pin.
6. Checking leaf spring for aging, cracks, breakdown, and severe rust (If any of such cases
is found, replace the assembly.)
7. Free camber of leaf spring assembly
Free camber
Vehicle model
Standard value Limit value
1051 series 106 mm 100~112 mm
1061 series 122 mm 112~128 mm
1089 series 135 mm 127~141 mm
Notice:
The left-right camber deviation should not be greater than 4mm, otherwise vehicle tilt will
result.
