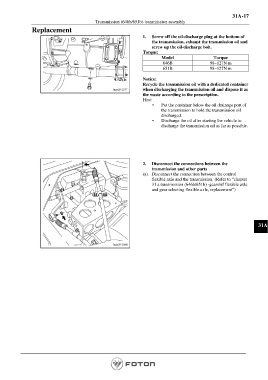

31A-17
Transmission (646b/651b)-transmission assembly
Replacement
1. Screw off the oil-discharge plug at the bottom of
the transmission, exhaust the transmission oil and
screw up the oil-discharge bolt.
Torque:
Model Torque
646B 98~127N·m
651B 98~127N·m

Notice:
Recycle the transmission oil with a dedicated container
when discharging the transmission oil and dispose it as
the waste according to the prescription.
Hint:
• Put the container below the oil drainage port of
the transmission to hold the transmission oil
discharged.
• Discharge the oil after starting the vehicle to
discharge the transmission oil as far as possible.

2. Disconnect the connections between the
transmission and other parts
(a). Disconnect the connection between the control
flexible axle and the transmission. (Refer to “chapter
31 a transmission (646b/651b) -gearshif flexible axle
and gear selecting flexible axle, replacement”)

31A
