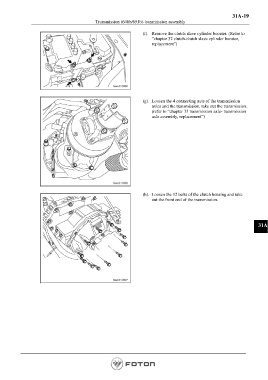

Page 865 - Workshop Manual - Aumark (BJ1051)
P. 865
31A-19
Transmission (646b/651b)-transmission assembly
(f). Remove the clutch slave cylinder booster. (Refer to
“chapter 32 clutch-clutch slave cylinder booster,
replacement”)
(g). Loosen the 4 connecting nuts of the transmission
axles and the transmission, take out the transmission.
(refer to “chapter 33 transmission axle- transmission
axle assembly, replacement”)
(h). Loosen the 12 bolts of the clutch housing and take
out the front end of the transmission.
31A
Page 865
