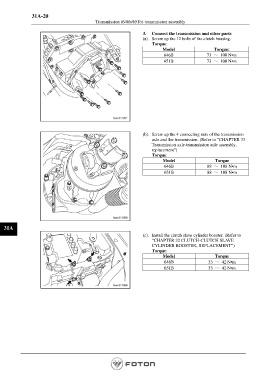

Page 866 - Workshop Manual - Aumark (BJ1051)

31A-20
Transmission (646b/651b)-transmission assembly

3. Connect the transmission and other parts
(a). Screw up the 12 bolts of the clutch housing.
Torque:
Model Torque:
646B 73 ～ 100 N•m
651B 73 ～ 100 N•m

(b). Screw up the 4 connecting nuts of the transmission
axle and the transmission. (Refer to “CHAPTER 33
Transmission axle-transmission axle assembly,
replacement”)
Torque:
Model Torque
646B 88 ～ 108 N•m
651B 88 ～ 108 N•m

31A
(c). Install the clutch slave cylinder booster. (Refer to
“CHAPTER 32 CLUTCH-CLUTCH SLAVE
CYLINDER BOOSTER, REPLACEMENT”)
Torque:
Model Torque
646B 33 ～ 42 N•m
651B 33 ～ 42 N•m

Page 866
