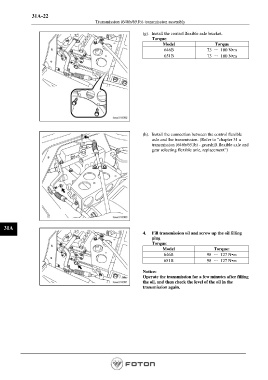

Page 868 - Workshop Manual - Aumark (BJ1051)

31A-22
Transmission (646b/651b)-transmission assembly

(g). Install the control flexible axle bracket.
Torque:
Model Torque
646B 73 ～ 100 N•m
651B 73 ～ 100 N•m

(h). Install the connection between the control flexible
axle and the transmission. (Refer to “chapter 31 a
transmission (646b/651b) - gearshift flexible axle and
gear selecting flexible axle, replacement”)

31A
4. Fill transmission oil and screw up the oil filling
plug
Torque:
Model Torque:
646B 98 ～ 127 N•m
651B 98 ～ 127 N•m

Notice:
Operate the transmission for a few minutes after filling
the oil, and then check the level of the oil in the
transmission again.

Page 868
