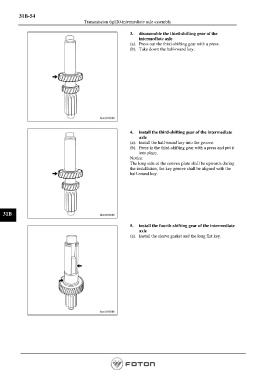

31B-54
Transmission 6g120-intermediate axle assembly

3. disassemble the third-shifting gear of the
intermediate axle
(a). Press out the third-shifting gear with a press.
(b). Take down the half-round key.

4. install the third-shifting gear of the intermediate
axle
(a). Install the half-round key into the groove.
(b). Press in the third-shifting gear with a press and put it
into place.
Notice:
The long side of the convex plate shall be upwards during
the installation, the key groove shall be aligned with the
half-round key.

31B

5. install the fourth-shifting gear of the intermediate
axle
(a). Install the sleeve gasket and the long flat key.
