P. 973

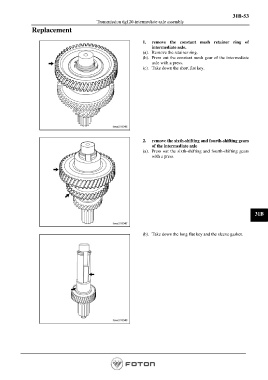

31B-53
Transmission 6g120-intermediate axle assembly
Replacement
1. remove the constant mesh retainer ring of
intermediate axle.
(a). Remove the retainer ring.
(b). Press out the constant mesh gear of the intermediate
axle with a press.
(c). Take down the short flat key.
2. remove the sixth-shifting and fourth-shifting gears
of the intermediate axle
(a). Press out the sixth-shifting and fourth-shifting gears
with a press.
31B
(b). Take down the long flat key and the sleeve gasket.
