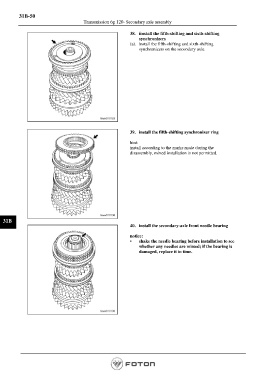

Page 970 - Workshop Manual - Aumark (BJ1051)
P. 970
31B-50
Transmission 6g 120- Secondary axle assembly
38. iinstall the fifth-shifting and sixth-shifting
synchronizers
(a). install the fifth-shifting and sixth-shifting
synchronizers on the secondary axle.
39. install the fifth-shifting synchronizer ring
hint:
install according to the marks made during the
disassembly, mixed installation is not permitted.
31B
40. install the secondary-axle front needle bearing
notice:
• shake the needle bearing before installation to see
whether any needles are missed; if the bearing is
damaged, replace it in time.
Page 970
