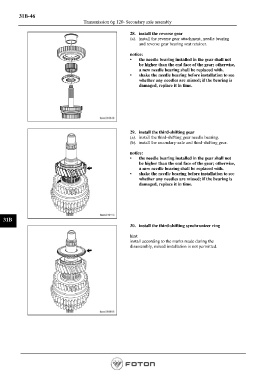

31B-46
Transmission 6g 120- Secondary axle assembly

28. install the reverse gear
(a). install the reverse gear attachment, needle bearing
and reverse gear bearing seat retainer.

notice:
• the needle bearing installed in the gear shall not
be higher than the end face of the gear; otherwise,
a new needle bearing shall be replaced with.
• shake the needle bearing before installation to see
whether any needles are missed; if the bearing is
damaged, replace it in time.

29. install the third-shifting gear
(a). install the third-shifting gear needle bearing.
(b). install the secondary-axle and third-shifting gear.

notice:
• the needle bearing installed in the gear shall not
be higher than the end face of the gear; otherwise,
a new needle bearing shall be replaced with.
• shake the needle bearing before installation to see
whether any needles are missed; if the bearing is
damaged, replace it in time.

31B
30. install the third-shifting synchronizer ring

hint:
install according to the marks made during the
disassembly, mixed installation is not permitted.
