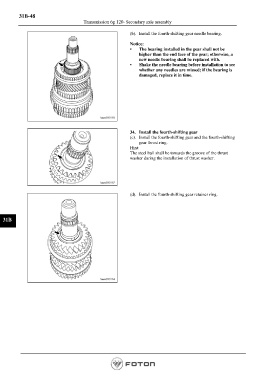

31B-48
Transmission 6g 120- Secondary axle assembly

(b). Install the fourth-shifting gear needle bearing.

Notice:
• The bearing installed in the gear shall not be
higher than the end face of the gear; otherwise, a
new needle bearing shall be replaced with.
• Shake the needle bearing before installation to see
whether any needles are missed; if the bearing is
damaged, replace it in time.

34. Install the fourth-shifting gear
(c). Install the fourth-shifting gear and the fourth-shifting
gear thrust ring.
Hint:
The steel ball shall be towards the groove of the thrust
washer during the installation of thrust washer.

(d). Install the fourth-shifting gear retainer ring.

31B
