Page 967 - Workshop Manual - Aumark (BJ1051)
P. 967
31B-47

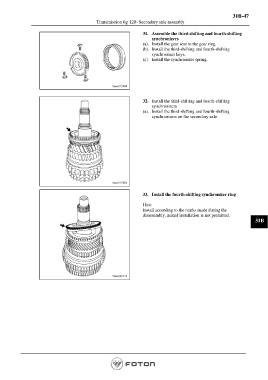

Transmission 6g 120- Secondary axle assembly
31. Assemble the third-shifting and fourth-shifting
synchronizers
(a). Install the gear seat to the gear ring.
(b). Install the third-shifting and fourth-shifting
synchronizer keys.
(c). Install the synchronizer spring.
32. Install the third-shifting and fourth-shifting
synchronizers
(a). Install the third-shifting and fourth-shifting
synchronizers on the secondary axle.
33. Install the fourth-shifting synchronizer ring
Hint:
Install according to the marks made during the
disassembly, mixed installation is not permitted.
31B
Page 967
