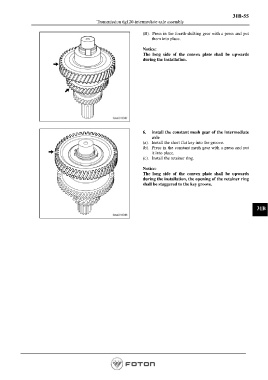

Page 975 - Workshop Manual - Aumark (BJ1051)
P. 975
31B-55
Transmission 6g120-intermediate axle assembly
(B). Press in the fourth-shifting gear with a press and put
them into place.
Notice:
The long side of the convex plate shall be upwards
during the installation.
6. install the constant mesh gear of the intermediate
axle
(a). Install the short flat key into the groove.
(b). Press in the constant mesh gear with a press and put
it into place.
(c). Install the retainer ring.
Notice:
The long side of the convex plate shall be upwards
during the installation, the opening of the retainer ring
shall be staggered to the key groove.
31B
