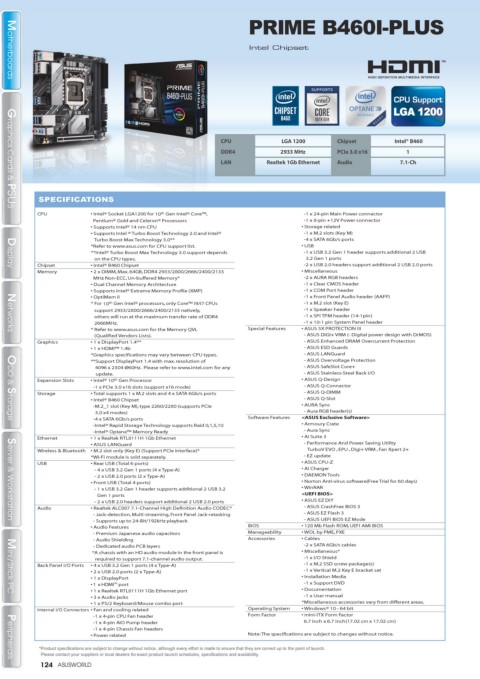

PRIME B460I-PLUS

Intel Chipset

Motherboards
Motherboards

CPU LGA 1200 Chipset Intel® B460
DDR4 2933 MHz PCIe 3.0 x16 1

LAN Realtek 1Gb Ethernet Audio 7.1-Ch

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • Intel® Socket LGA1200 for 10 th Gen Intel® Core™, -1 x 24-pin Main Power connector
Pentium® Gold and Celeron® Processors -1 x 8-pin +12V Power connector
• Supports Intel® 14 nm CPU • Storage related
• Supports Intel ® Turbo Boost Technology 2.0 and Intel® -1 x M.2 slots (Key M)
Turbo Boost Max Technology 3.0** -4 x SATA 6Gb/s ports
*Refer to www.asus.com for CPU support list. • USB
**Intel® Turbo Boost Max Technology 3.0 support depends -1 x USB 3.2 Gen 1 header supports additional 2 USB
on the CPU types. 3.2 Gen 1 ports
Chipset • Intel® B460 Chipset -2 x USB 2.0 headers support additional 2 USB 2.0 ports
Display
Display
Memory • 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 • Miscellaneous
MHz Non-ECC, Un-buffered Memory* -2 x AURA RGB headers
• Dual Channel Memory Architecture -1 x Clear CMOS header
• Supports Intel® Extreme Memory Profile (XMP) -1 x COM Port header
• OptiMem II -1 x Front Panel Audio header (AAFP)
* For 10 th Gen Intel® processors, only Core™ i9/i7 CPUs -1 x M.2 slot (Key E)
support 2933/2800/2666/2400/2133 natively, -1 x Speaker header
others will run at the maximum transfer rate of DDR4 -1 x SPI TPM header (14-1pin)
2666MHz. -1 x 10-1 pin System Panel header
* Refer to www.asus.com for the Memory QVL Special Features • ASUS 5X PROTECTION III
Networks
Networks
(Qualified Vendors Lists). - ASUS DIGI+ VRM (- Digital power design with DrMOS)
Graphics • 1 x DisplayPort 1.4** - ASUS Enhanced DRAM Overcurrent Protection
• 1 x HDMI™ 1.4b - ASUS ESD Guards
*Graphics specifications may vary between CPU types. - ASUS LANGuard
**Support DisplayPort 1.4 with max. resolution of - ASUS Overvoltage Protection
4096 x 2304 @60Hz. Please refer to www.intel.com for any - ASUS SafeSlot Core+
update. - ASUS Stainless-Steel Back I/O
Expansion Slots • Intel® 10 th Gen Processor • ASUS Q-Design
-1 x PCIe 3.0 x16 slots (support x16 mode) - ASUS Q-Connector
Storage • Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports - ASUS Q-DIMM
• Intel® B460 Chipset - ASUS Q-Slot
-M.2_1 slot (Key M), type 2260/2280 (supports PCIe • AURA Sync
3.0 x4 modes) - Aura RGB header(s)
-4 x SATA 6Gb/s ports Software Features <ASUS Exclusive Software>
ODD & Storage
ODD & Storage
-Intel® Rapid Storage Technology supports Raid 0,1,5,10 • Armoury Crate
-Intel® Optane™ Memory Ready - Aura Sync
Ethernet • 1 x Realtek RTL8111H 1Gb Ethernet • AI Suite 3
• ASUS LANGuard - Performance And Power Saving Utility
Wireless & Bluetooth • M.2 slot only (Key E) (Support PCIe interface)* TurboV EVO , EPU , Digi+ VRM , Fan Xpert 2+
*Wi-Fi module is sold separately. - EZ update
USB • Rear USB (Total 6 ports) • ASUS CPU-Z
- 4 x USB 3.2 Gen 1 ports (4 x Type-A) • AI Charger
- 2 x USB 2.0 ports (2 x Type-A) • DAEMON Tools
• Front USB (Total 4 ports) • Norton Anti-virus software(Free Trial for 60 days)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 • WinRAR
Gen 1 ports <UEFI BIOS>
- 2 x USB 2.0 headers support additional 2 USB 2.0 ports • ASUS EZ DIY

Audio • Realtek ALC887 7.1-Channel High Definition Audio CODEC* - ASUS CrashFree BIOS 3
- Jack-detection, Multi-streaming, Front Panel Jack-retasking - ASUS EZ Flash 3
- Supports up to 24-Bit/192kHz playback - ASUS UEFI BIOS EZ Mode
Server & Workstation
Server & Workstation
• Audio Features BIOS • 128 Mb Flash ROM, UEFI AMI BIOS
- Premium Japanese audio capacitors Manageability • WOL by PME, PXE
- Audio Shielding Accessories • Cables
- Dedicated audio PCB layers -2 x SATA 6Gb/s cables
*A chassis with an HD audio module in the front panel is • Miscellaneous*
required to support 7.1-channel audio output. -1 x I/O Shield
Back Panel I/O Ports • 4 x USB 3.2 Gen 1 ports (4 x Type-A) -1 x M.2 SSD screw package(s)
• 2 x USB 2.0 ports (2 x Type-A) -1 x Vertical M.2 Key E bracket set
• 1 x DisplayPort • Installation Media
TM
• 1 x HDMI port -1 x Support DVD
• 1 x Realtek RTL8111H 1Gb Ethernet port • Documentation
Mini / Stick PC
Mini / Stick PC
• 3 x Audio jacks -1 x User manual
• 1 x PS/2 Keyboard/Mouse combo port *Miscellaneous accessories vary from different areas.
Internal I/O Connectors • Fan and cooling related Operating System • Windows® 10 - 64 bit
-1 x 4-pin CPU Fan header Form Factor • mini-ITX Form Factor
-1 x 4-pin AIO Pump header 6.7 inch x 6.7 inch(17.02 cm x 17.02 cm)
-1 x 4-pin Chassis Fan headers
• Power related Note: The specifications are subject to changes without notice.
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
