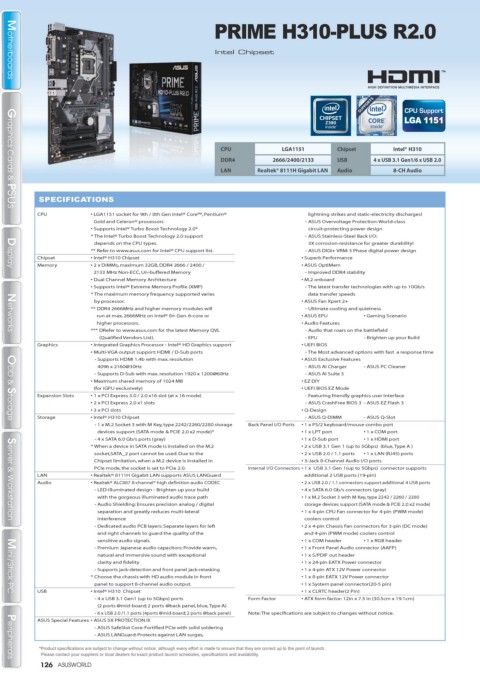

Page 128 - ASUS_WORLD_134_ebook

PRIME H310-PLUS R2.0

Intel Chipset

Motherboards
Motherboards

CPU LGA1151 Chipset Intel® H310
DDR4 2666/2400/2133 USB 4 x USB 3.1 Gen1/6 x USB 2.0

LAN Realtek® 8111H Gigabit LAN Audio 8-CH Audio

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • LGA1151 socket for 9th / 8th Gen Intel® Core™, Pentium® lightning strikes and static-electricity discharges!

Gold and Celeron® processors - ASUS Overvoltage Protection: World-class

• Supports Intel® Turbo Boost Technology 2.0* circuit-protecting power design

* The Intel® Turbo Boost Technology 2.0 support - ASUS Stainless-Steel Back I/O:
depends on the CPU types. 3X corrosion-resistance for greater durability!
** Refer to www.asus.com for Intel® CPU support list. - ASUS DIGI+ VRM: 5 Phase digital power design

Chipset • Intel® H310 Chipset • Superb Performance

Memory • 2 x DIMMs, maximum 32GB, DDR4 2666 / 2400 / • ASUS OptiMem
Display
Display
2133 MHz Non-ECC, Un-buffered Memory - Improved DDR4 stability

• Dual Channel Memory Architecture • M.2 onboard
• Supports Intel® Extreme Memory Profile (XMP) - The latest transfer technologies with up to 10Gb/s

* The maximum memory frequency supported varies data transfer speeds
by processor. • ASUS Fan Xpert 2+

** DDR4 2666MHz and higher memory modules will - Ultimate cooling and quietness
run at max. 2666MHz on Intel® 8th Gen. 6-core or • ASUS EPU • Gaming Scenario
higher processors. • Audio Features
*** DRefer to www.asus.com for the latest Memory QVL - Audio that roars on the battlefield

Networks
Networks
(Qualified Vendors List). - EPU - Brighten up your Build

Graphics • Integrated Graphics Processor - Intel® HD Graphics support • UEFI BIOS

• Multi-VGA output support: HDMI / D-Sub ports - The Most advanced options with fast a response time

- Supports HDMI 1.4b with max. resolution • ASUS Exclusive Features

4096 x 2160@30Hz - ASUS AI Charger - ASUS PC Cleaner

- Supports D-Sub with max. resolution 1920 x 1200@60Hz - ASUS AI Suite 3

• Maximum shared memory of 1024 MB • EZ DIY
(for iGPU exclusively) • UEFI BIOS EZ Mode

Expansion Slots • 1 x PCI Express 3.0 / 2.0 x16 slot (at x 16 mode) - Featuring friendly graphics user interface
• 2 x PCI Express 2.0 x1 slots - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3

• 3 x PCI slots • Q-Design

Storage • Intel® H310 Chipset - ASUS Q-DIMM - ASUS Q-Slot

ODD & Storage
ODD & Storage

- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage Back Panel I/O Ports • 1 x PS/2 keyboard/mouse combo port
devices support (SATA mode & PCIE 2.0 x2 mode)* • 1 x LPT port • 1 x COM port
- 4 x SATA 6.0 Gb/s ports (gray) • 1 x D-Sub port • 1 x HDMI port

* When a device in SATA mode is installed on the M.2 • 2 x USB 3.1 Gen 1 (up to 5Gbps) (blue, Type A )
socket,SATA_2 port cannot be used. Due to the • 2 x USB 2.0 / 1.1 ports • 1 x LAN (RJ45) ports
Chipset limitation, when a M.2 device is installed in • 3-Jack 8-Channel Audio I/O ports

PCIe mode, the socket is set to PCIe 2.0. Internal I/O Connectors • 1 x USB 3.1 Gen 1(up to 5Gbps) connector supports
LAN • Realtek® 8111H Gigabit LAN supports ASUS LANGuard additional 2 USB ports (19-pin)
Audio • Realtek® ALC887 8-channel* high definition audio CODEC • 2 x USB 2.0 / 1.1 connectors support additional 4 USB ports

- LED-Illuminated design - Brighten up your build • 4 x SATA 6.0 Gb/s connectors (gray)
with the gorgeous illuminated audio trace path • 1 x M.2 Socket 3 with M Key, type 2242 / 2260 / 2280
- Audio Shielding: Ensures precision analog / digital storage devices support (SATA mode & PCIE 2.0 x2 mode)

separation and greatly reduces multi-lateral • 1 x 4-pin CPU Fan connector for 4-pin (PWM mode)
interference coolers control
Server & Workstation
Server & Workstation
- Dedicated audio PCB layers: Separate layers for left • 2 x 4-pin Chassis Fan connectors for 3-pin (DC mode)

and right channels to guard the quality of the and 4-pin (PWM mode) coolers control

sensitive audio signals • 1 x COM header • 1 x RGB header

- Premium Japanese audio capacitors: Provide warm, • 1 x Front Panel Audio connector (AAFP)

natural and immersive sound with exceptional • 1 x S/PDIF out header

clarity and fidelity • 1 x 24-pin EATX Power connector

- Supports jack-detection and front panel jack-retasking • 1 x 4-pin ATX 12V Power connector

* Choose the chassis with HD audio module in front • 1 x 8-pin EATX 12V Power connector

panel to support 8-channel audio output. • 1 x System panel connector(20-5 pin)
USB • Intel® H310 Chipset • 1 x CLRTC header(2 Pin)
Mini / Stick PC
Mini / Stick PC
- 4 x USB 3.1 Gen1 (up to 5Gbps) ports Form Factor • ATX form factor: 12in x 7.5 in (30.5cm x 19.1cm)

(2 ports @mid-board; 2 ports @back panel, blue, Type A)
- 6 x USB 2.0 /1.1 ports (4ports @mid-board; 2 ports @back panel) Note: The specifications are subject to changes without notice.
ASUS Special Features • ASUS 5X PROTECTION III

- ASUS SafeSlot Core: Fortified PCIe with solid soldering

- ASUS LANGuard: Protects against LAN surges,
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
