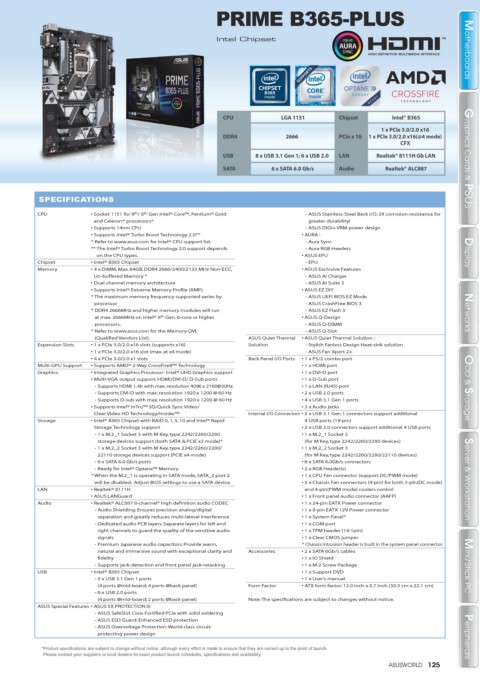

Page 127 - ASUS_WORLD_134_ebook

PRIME B460I-PLUS PRIME B365-PLUS

Intel Chipset
Intel Chipset Motherboards Motherboards

CPU LGA 1151 Chipset Intel® B365
1 x PCIe 3.0/2.0 x16
DDR4 2666 PCIe x 16
1 x PCIe 3.0/2.0 x16(@4 mode)
CFX
USB 8 x USB 3.1 Gen 1; 6 x USB 2.0 LAN Realtek® 8111H Gb LAN Graphics Cards & PSUS
SATA 6 x SATA 6.0 Gb/s Audio Realtek® ALC887

SPECIFICATIONS
Graphics Cards & PSUS

CPU • Socket 1151 for 9 th / 8 th Gen Intel® Core™, Pentium® Gold - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for
and Celeron® processors* greater durability!
• Supports 14nm CPU - ASUS DIGI+ VRM power design
• Supports Intel® Turbo Boost Technology 2.0** • AURA :
* Refer to www.asus.com for Intel® CPU support list. - Aura Sync
** The Intel® Turbo Boost Technology 2.0 support depends - Aura RGB Headers
on the CPU types. • ASUS EPU Display Display
Chipset • Intel® B365 Chipset - EPU

Memory • 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, • ASUS Exclusive Features
Un-buffered Memory * - ASUS Ai Charger
• Dual channel memory architecture - ASUS AI Suite 3
• Supports Intel® Extreme Memory Profile (XMP) • ASUS EZ DIY
* The maximum memory frequency supported varies by - ASUS UEFI BIOS EZ Mode
processor - ASUS CrashFree BIOS 3
* DDR4 2666MHz and higher memory modules will run - ASUS EZ Flash 3 Networks Networks
at max. 2666MHz on Intel® 8 th Gen. 6-core or higher • ASUS Q-Design
processors. - ASUS Q-DIMM
* Refer to www.asus.com for the Memory QVL - ASUS Q-Slot
(Qualified Vendors List). ASUS Quiet Thermal • ASUS Quiet Thermal Solution :
Expansion Slots • 1 x PCIe 3.0/2.0 x16 slots (supports x16) Solution - Stylish Fanless Design Heat-sink solution

• 1 x PCIe 3.0/2.0 x16 slot (max. at x4 mode) - ASUS Fan Xpert 2+

• 4 x PCIe 3.0/2.0 x1 slots Back Panel I/O Ports • 1 x PS/2 combo port
Multi-GPU Support • Supports AMD® 2-Way CrossFireX™ Technology • 1 x HDMI port
Graphics • Integrated Graphics Processor- Intel® UHD Graphics support • 1 x DVI-D port
• Multi-VGA output support: HDMI/DVI-D/ D-Sub ports • 1 x D-Sub port
- Supports HDMI 1.4b with max. resolution 4096 x 2160@30Hz • 1 x LAN (RJ45) port ODD & Storage ODD & Storage
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz • 2 x USB 2.0 ports
- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz • 4 x USB 3.1 Gen 1 ports
• Supports Intel® InTru™ 3D/Quick Sync Video/ • 3 x Audio jacks
Clear Video HD Technology/Insider™ Internal I/O Connectors • 2 x USB 3.1 Gen 1 connectors support additional
Storage • Intel® B365 Chipset with RAID 0, 1, 5, 10 and Intel® Rapid 4 USB ports (19-pin)

Storage Technology support • 2 x USB 2.0 connectors support additional 4 USB ports
- 1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280 • 1 x M.2_1 Socket 3
storage devices support (both SATA & PCIE x2 mode)* (for M Key, type 2242/2260/2280 devices)
- 1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280/ • 1 x M.2_2 Socket 3
22110 storage devices support (PCIE x4 mode) (for M Key, type 2242/2260/2280/22110 devices)
- 6 x SATA 6.0 Gb/s ports • 6 x SATA 6.0Gb/s connectors
- Ready for Intel® Optane™ Memory • 2 x RGB Header(s)
* When the M.2_1 is operating in SATA mode, SATA_2 port 2 • 1 x CPU Fan connector (support DC/PWM mode)
will be disabled. Adjust BIOS settings to use a SATA device. • 3 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) Server & Workstation
LAN • Realtek® 8111H and 4-pin(PWM mode) coolers control

• ASUS LANGuard • 1 x Front panel audio connector (AAFP)
Audio • Realtek® ALC887 8-channel* high definition audio CODEC • 1 x 24-pin EATX Power connector
- Audio Shielding: Ensures precision analog/digital • 1 x 8-pin EATX 12V Power connector
separation and greatly reduces multi-lateral interference • 1 x System Panel*
Server & Workstation
- Dedicated audio PCB layers: Separate layers for left and • 1 x COM port
right channels to guard the quality of the sensitive audio • 1 x TPM header (14-1pin)
signals
- Premium Japanese audio capacitors: Provide warm, * Chassis intrusion header is built in the system panel connector.
natural and immersive sound with exceptional clarity and Accessories • 2 x SATA 6Gb/s cables
fidelity • 1 x IO Shield
- Supports jack-detection and front panel jack-retasking • 1 x M.2 Screw Package Mini / Stick PC
USB • Intel® B365 Chipset • 1 x Support DVD
- 8 x USB 3.1 Gen 1 ports • 1 x User’s manual
(4 ports @mid-board; 4 ports @back panel) Form Factor • ATX form factor: 12.0 inch x 8.7 inch (30.5 cm x 22.1 cm)
- 6 x USB 2.0 ports
• 1 x Clear CMOS jumper Mini / Stick PC
(4 ports @mid-board; 2 ports @back panel) Note: The specifications are subject to changes without notice.
ASUS Special Features • ASUS 5X PROTECTION III
- ASUS SafeSlot Core: Fortified PCIe with solid soldering
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-
protecting power design Peripherals Peripherals
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
