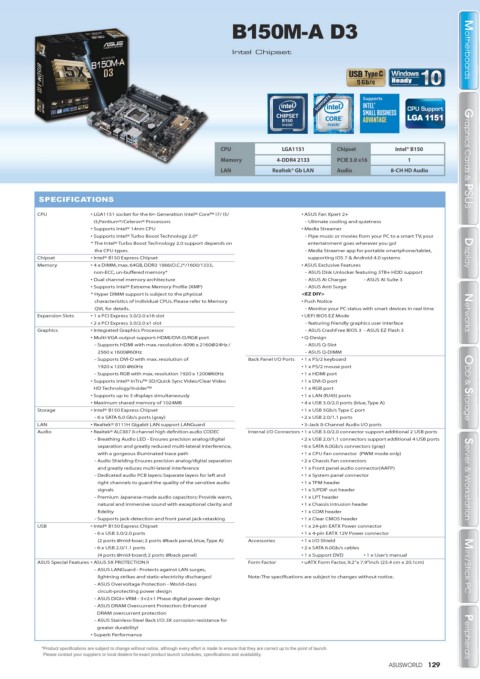

B150M-A D3

Intel Chipset Motherboards Motherboards

CPU LGA1151 Chipset Intel® B150
Memory 4-DDR4 2133 PCIE 3.0 x16 1 Graphics Cards & PSUS

LAN Realtek® Gb LAN Audio 8-CH HD Audio

SPECIFICATIONS
Graphics Cards & PSUS
CPU • LGA1151 socket for the 6th Generation Intel® Core™ i7/ i5/ • ASUS Fan Xpert 2+
i3,Pentium®/Celeron® Processors - Ultimate cooling and quietness
• Supports Intel® 14nm CPU • Media Streamer
• Supports Intel® Turbo Boost Technology 2.0* - Pipe music or movies from your PC to a smart TV, your
* The Intel® Turbo Boost Technology 2.0 support depends on entertainment goes wherever you go!
the CPU types. - Media Streamer app for portable smartphone/tablet, Display
Chipset • Intel® B150 Express Chipset supporting iOS 7 & Android 4.0 systems

Memory • 4 x DIMM, max. 64GB, DDR3 1866(O.C.)*/1600/1333, • ASUS Exclusive Features
Display
non-ECC, un-buffered memory* - ASUS Disk Unlocker featuring 3TB+ HDD support

• Dual channel memory architecture - ASUS AI Charger - ASUS AI Suite 3

• Supports Intel® Extreme Memory Profile (XMP) - ASUS Anti Surge
* Hyper DIMM support is subject to the physical <EZ DIY>
characteristics of individual CPUs. Please refer to Memory • Push Notice
QVL for details. - Monitor your PC status with smart devices in real time
Expansion Slots • 1 x PCI Express 3.0/2.0 x16 slot • UEFI BIOS EZ Mode Networks Networks
• 2 x PCI Express 3.0/2.0 x1 slot - featuring friendly graphics user interface
Graphics • Integrated Graphics Processor - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3
• Multi-VGA output support: HDMI/DVI-D/RGB port • Q-Design
- Supports HDMI with max. resolution 4096 x 2160@24Hz / - ASUS Q-Slot
2560 x 1600@60Hz - ASUS Q-DIMM
- Supports DVI-D with max. resolution of Back Panel I/O Ports • 1 x PS/2 keyboard
1920 x 1200 @60Hz • 1 x PS/2 mouse port
- Supports RGB with max. resolution 1920 x 1200@60Hz • 1 x HDMI port
• Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video • 1 x DVI-D port

HD Technology/Insider™ • 1 x RGB port ODD & Storage ODD & Storage

• Supports up to 3 displays simultaneously • 1 x LAN (RJ45) ports
• Maximum shared memory of 1024MB • 4 x USB 3.0/2.0 ports (blue, Type A)

Storage • Intel® B150 Express Chipset • 1 x USB 5Gb/s Type C port
- 6 x SATA 6.0 Gb/s ports (gray) • 2 x USB 2.0/1.1 ports
LAN • Realtek® 8111H Gigabit LAN support LANGuard • 3-Jack 8-Channel Audio I/O ports
Audio • Realtek® ALC887 8-channel high definition audio CODEC Internal I/O Connectors • 1 x USB 3.0/2.0 connector support additional 2 USB ports

- Breathing Audio LED - Ensures precision analog/digital • 2 x USB 2.0/1.1 connectors support additional 4 USB ports
separation and greatly reduced multi-lateral interference, • 6 x SATA 6.0Gb/s connectors (gray)
with a gorgeous illuminated trace path • 1 x CPU Fan connector (PWM mode only)
- Audio Shielding: Ensures precision analog/digital separation • 2 x Chassis Fan connectors
and greatly reduces multi-lateral interference • 1 x Front panel audio connector(AAFP)
- Dedicated audio PCB layers: Separate layers for left and • 1 x System panel connector
right channels to guard the quality of the sensitive audio • 1 x TPM header Server & Workstation Server & Workstation
signals • 1 x S/PDIF out header
- Premium Japanese-made audio capacitors: Provide warm, • 1 x LPT header
natural and immersive sound with exceptional clarity and • 1 x Chassis intrusion header
fidelity • 1 x COM header
- Supports jack-detection and front panel jack-retasking • 1 x Clear CMOS header

USB • Intel® B150 Express Chipset • 1 x 24-pin EATX Power connector
- 6 x USB 3.0/2.0 ports • 1 x 4-pin EATX 12V Power connector
(2 ports @mid-boar; 2 ports @back panel, blue, Type A) Accessories • 1 x I/O Shield
- 6 x USB 2.0/1.1 ports • 2 x SATA 6.0Gb/s cables
(4 ports @mid-board; 2 ports @back panel) • 1 x Support DVD • 1 x User’s manual
ASUS Special Features • ASUS 5X PROTECTION II Form Factor • uATX Form Factor, 9.2”x 7.9”inch (23.4 cm x 20.1cm)
- ASUS LANGuard - Protects against LAN surges, Mini / Stick PC Mini / Stick PC
lightning strikes and static-electricity discharges! Note: The specifications are subject to changes without notice.
- ASUS Overvoltage Protection - World-class
circuit-protecting power design
- ASUS DIGI+ VRM - 3+2+1 Phase digital power design
- ASUS DRAM Overcurrent Protection: Enhanced
DRAM overcurrent protection
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for
greater durability!
• Superb Performance Peripherals Peripherals
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
