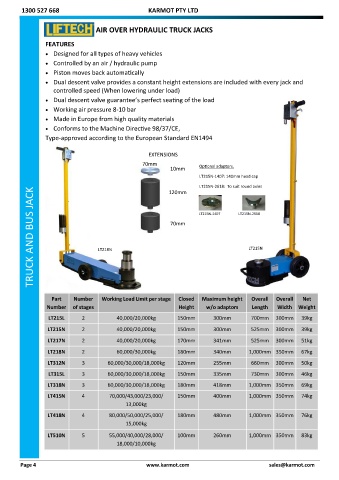

AIR OVER HYDRAULIC TRUCK JACKS

FEATURES
 Designed for all types of heavy vehicles
 Controlled by an air / hydraulic pump
 Piston moves back automatically
 Dual descent valve provides a constant height extensions are included with every jack and
controlled speed (When lowering under load)
 Dual descent valve guarantee’s perfect seating of the load
 Working air pressure 8-10 bar
 Made in Europe from high quality materials

 Conforms to the Machine Directive 98/37/CE,
Type-approved according to the European Standard EN1494

EXTENSIONS
70mm Optional adaptors.
10mm
LT215N-1407: 140mm head cap
TRUCK AND BUS JACK
LT215N-2618: To suit round axles
120mm

LT215N-1407 LT215N-2618
70mm

LT218N LT215N

Part Number Working Load Limit per stage Closed Maximum height Overall Overall Net
Number of stages Height w/o adaptors Length Width Weight
LT215L 2 40,000/20,000kg 150mm 300mm 700mm 300mm 39kg

LT215N 2 40,000/20,000kg 150mm 300mm 525mm 300mm 39kg
LT217N 2 40,000/20,000kg 170mm 341mm 525mm 300mm 51kg

LT218N 2 60,000/30,000kg 180mm 340mm 1,000mm 350mm 67kg
LT312N 3 60,000/30,000/18,000kg 120mm 255mm 660mm 300mm 50kg

LT315L 3 60,000/30,000/18,000kg 150mm 335mm 730mm 300mm 46kg
LT318N 3 60,000/30,000/18,000kg 180mm 418mm 1,000mm 350mm 69kg
LT415N 4 70,000/43,000/23,000/ 150mm 400mm 1,000mm 350mm 74kg
13,000kg
LT418N 4 80,000/50,000/25,000/ 180mm 480mm 1,000mm 350mm 76kg
15,000kg

LT510N 5 55,000/40,000/28,000/ 100mm 260mm 1,000mm 350mm 83kg
18,000/10,000kg
