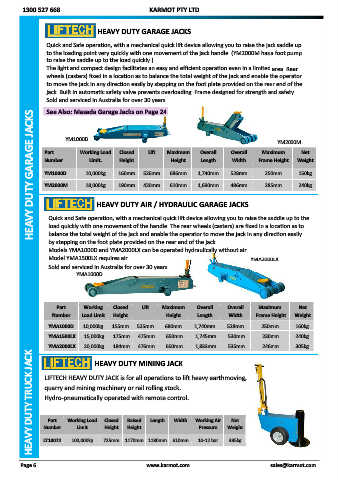

Page 12 - 2020 Catalogue - Email_Neat

1300 527 668 KARMOT PTY LTD

HEAVY DUTY GARAGE JACKS

Quick and Safe operation, with a mechanical quick lift device allowing you to raise the jack saddle up
to the loading point very quickly with one movement of the jack handle. (YM2000M has a foot pump
to raise the saddle up to the load quickly.)
The light and compact design facilitates an easy and efficient operation even in a limited area. Rear
wheels (casters) fixed in a location as to balance the total weight of the jack and enable the operator
to move the jack in any direction easily by stepping on the foot plate provided on the rear end of the
jack. Built in automatic safety valve prevents overloading. Frame designed for strength and safety.
Sold and serviced in Australia for over 30 years.

HEAVY DUTY GARAGE JACKS
See Also: Masada Garage Jacks on Page 24

YM1000D
YM2000M
Part Working Load Closed Lift Maximum Overall Overall Maximum Net
Number Limit. Height Height Length Width Frame Height Weight

YM1000D 10,000kg 160mm 526mm 686mm 1,740mm 528mm 250mm 150kg
YM2000M 18,000kg 190mm 420mm 610mm 1,690mm 496mm 285mm 240kg

HEAVY DUTY AIR / HYDRAULIC GARAGE JACKS

Quick and Safe operation, with a mechanical quick lift device allowing you to raise the saddle up to the
load quickly with one movement of the handle. The rear wheels (casters) are fixed in a location as to
balance the total weight of the jack and enable the operator to move the jack in any direction easily
by stepping on the foot plate provided on the rear end of the jack.
Models YMA1000D and YMA2000LX can be operated hydraulically without air.
Model YMA1500LX requires air. YMA2000LX
Sold and serviced in Australia for over 30 years.
YMA1000D

Part Working Closed Lift Maximum Overall Overall Maximum Net
Number Load Limit Height Height Length Width Frame Height Weight
YMA1000D 10,000kg 155mm 525mm 680mm 1,740mm 528mm 250mm 160kg
YMA1500LX 15,000kg 175mm 475mm 650mm 1,745mm 530mm 230mm 240kg

YMA2000LX 20,000kg 184mm 476mm 660mm 1,833mm 535mm 246mm 305kg
HEAVY DUTY TRUCK JACK
HEAVY DUTY MINING JACK

LIFTECH HEAVY DUTY JACK is for all operations to lift heavy earthmoving,
quarry and mining machinery or rail rolling stock.

Hydro-pneumatically operated with remote control.

Part Working Load Closed Raised Length Width Working Air Net
Number Limit Height Height Pressure Weight

LT10072 100,000kg 725mm 1170mm 1180mm 610mm 10-12 bar 385kg
